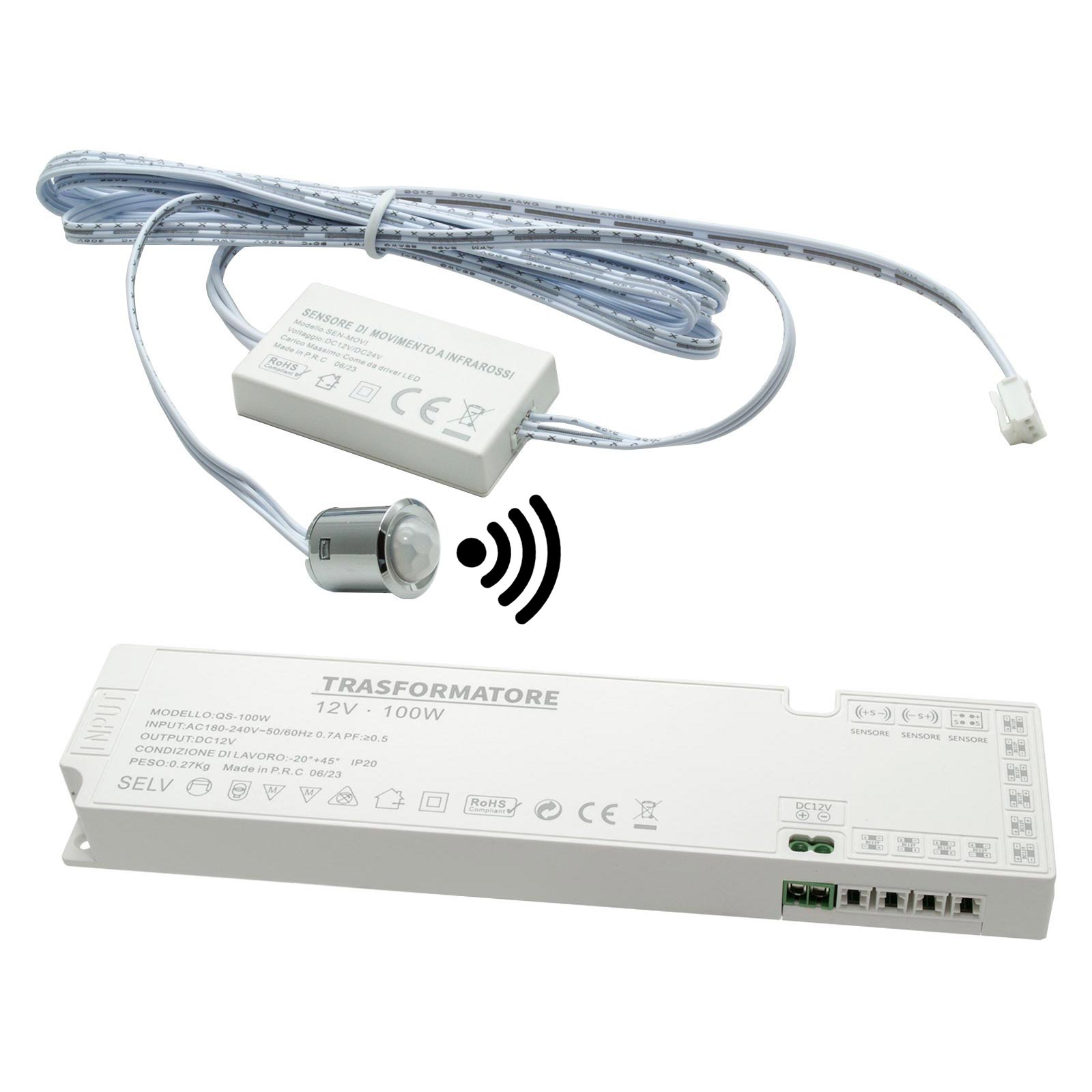

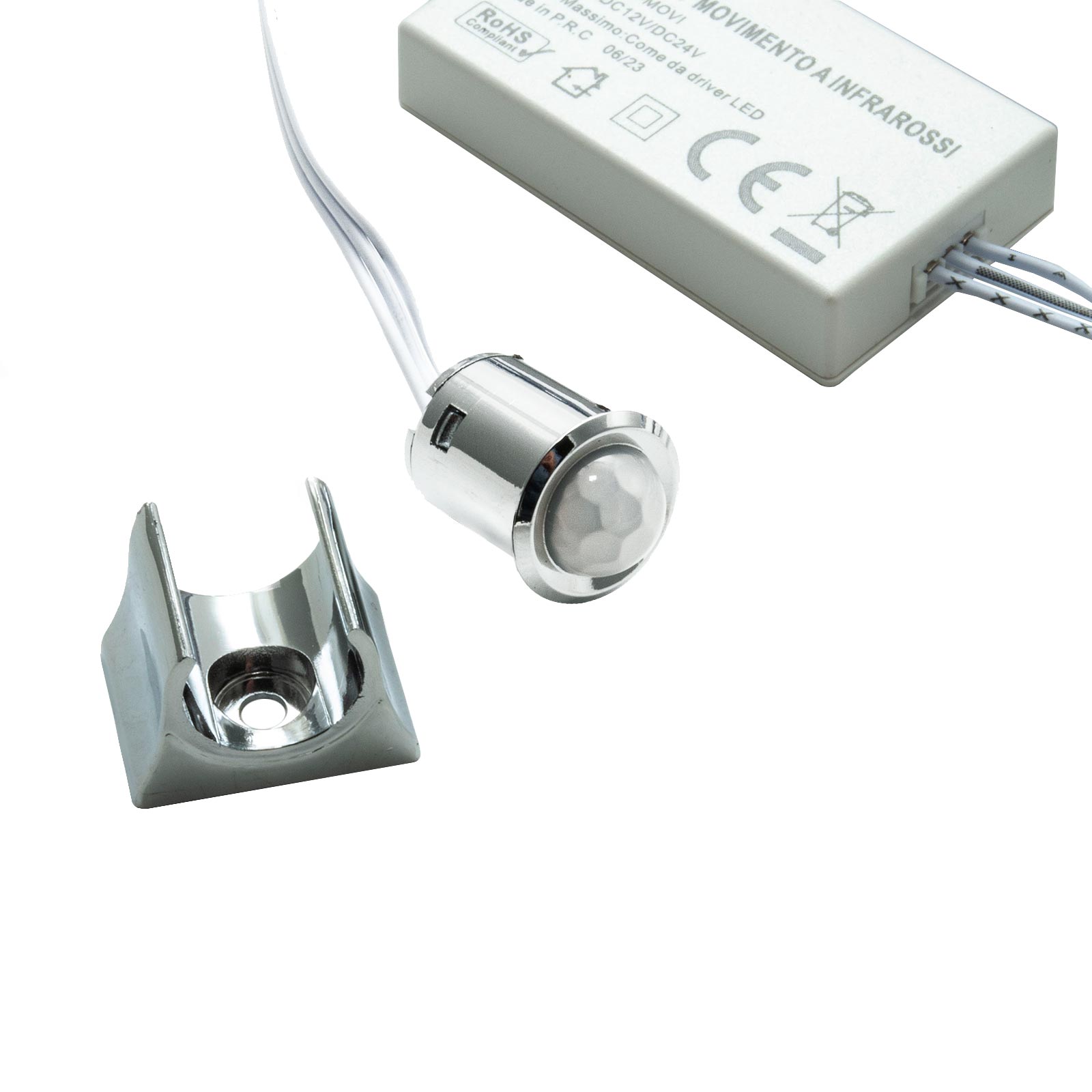

Passing infrared sensor, detects movement at a distance of 1-7cm and allows automatic switching on of lights and LED strips. Suitable for installation in places where, for reasons of hygiene, touching a switch to turn on the light is not permitted. The sensor is activated when motion is detected. Made of silver colored plastic, it adapts perfectly to all furnishings.

Possibility of inserting it into furniture, in the biological field to turn on lights in sterilized environments without touching. The sensor has an IP20 protection rating suitable for indoor use. It also comes complete with support for wall mounting. The control unit is equipped with a cable with a length of approximately 2.20 meters to position the sensor where it is most convenient. Maximum power supported 60W.

The sensor is powered by 12Vdc / 24Vdc with the 3-pin connector (using the 100W power supply included in the package).

Control unit dimensions: 50mm x 30mm x 10mm - Sensor dimensions: 18mm x 12mm x Ø 14mm

The 12V constant voltage power supply has a power of 100W, ideal for powering LED strips and bars with 12Vdc input voltage. Equipped with 6 power outputs via connector to connect up to 6 strips simultaneously, a 12V output with terminals and 3 inputs to connect the sensor.

It is supplied complete with power cable with plug for connection to the 230V electrical network, supports LED strips with max power. 100W. It is also equipped with protection against short circuits and voltage surges.

Thanks to the compact design it is possible to hide it easily in junction boxes. Thanks to this power supply we can have a versatile and complete power system to meet all needs.

Power supply dimensions: 230mm x 55mm x 20mm
