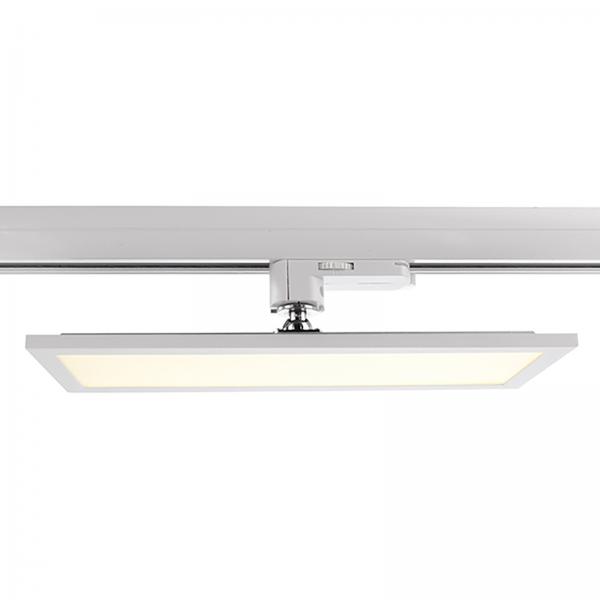

Particular three-phase LED panel with a slim design made of fully adjustable aluminum and inclinable up to 90 degrees, ideal for installations on THREE-PHASE electrified tracks. The panel has integrated 20W LEDs with high energy efficiency, useful for lighting shops, businesses, for your office or to give an original touch to your rooms. Thanks to the innovative design with a slim rectangular shape, this panel is the right solution for all those who want to illuminate and embellish their interiors at the same time. Available in 2 colors: White and Black.
Furthermore, thanks to the possibility of directing it, we can direct the light according to one's needs, also suitable for shop windows, to create lighting systems in modern homes, offices. The spotlight has a color rendering index >80, and also has a life of approximately 50,000 hours of operation. Thanks to the quality of the materials and the latest generation integrated LEDs, this product has a longer life over time.
It is powered at 230V via a three-phase connection to three-phase tracks and is available with a color temperature of 3000K warm light or 4000K natural light, with a luminous intensity of 2200 lumens. The spotlight has a wide 110 degree light angle. This spotlight can be rotated and tilted as needed to direct the light where it is needed.
Panel size: 300mm x 110mm - Mount height: 149mm
TECHNICAL FEATURES:
beam angle: 110°
Connection option: adapter
Operating mode: voltage constant
Operating temperature: -10°C - +35°C
Width (mm): 110
Rotation and rotation range: rotatable
Input Voltage: 110-240VAC/50-60Hz
Energy efficiency class: E
Energy consumption: 20kWh/1000h
Color: Black | White
color temperature: 3000K | 4000k
Color rendering index Ra: 80
Weight (gr): 560
Height (mm): 8.5
IP protection class: IP20
Number of LEDs: 108
LED design: 2835
Types of LEDs: SMD
storage temperature: -20°C - +45°C
Lifetime: 50,000 hours
Total power consumption (W): 20
Power Factor PF: 0.95
bulbs: including the light source
Light Color: Warm White | Natural white
Luminous flux: 2200lm
Luminous flux at end of life: 0.7
Luminous intensity: 699 cd
Lumens/Watts: 110
Length (mm): 300
Material: aluminum
angle of inclination: 90°
Energy reserves: including LED power supply
switching cycles: 30000
Protection class I,II,III: I
UGR: 28
ignition time: 0.5
