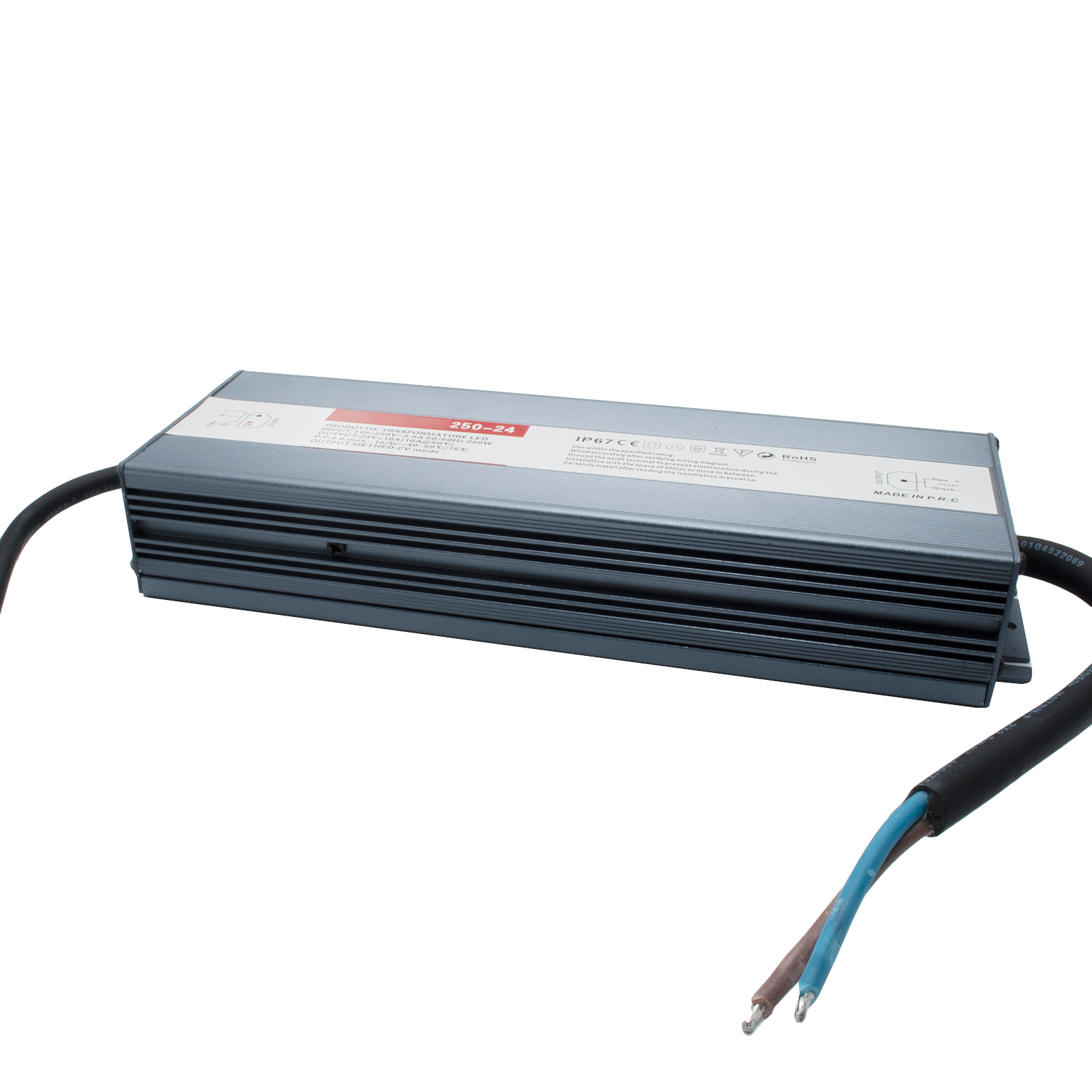

Stabilized power supply with compact dimensions, slim design with maximum power of 150W, ideal for powering all devices that require a 24V power supply. Suitable for video surveillance systems, cameras, lighting bodies with LED technology. Equipped with a 230V input and 24V output with a maximum amperage of 6A.

Thanks to its small size, it can be easily hidden in junction boxes or specific spaces. The power supply has an IP67 degree of protection also suitable for outdoor use.

The structure is made of metal allows better heat dissipation, it has no fans so it is completely silent. The power supply is equipped with a cable for connection to the mains.

Power supply dimensions: 215mm x 57mm x 25mm

TECHNICAL FEATURES:

IP67 LED power supply (or other devices) 24V constant current
Amperage: 6A
Power: 150W
Input voltage: 220v AC 50 / 60Hz (alternating current) AC 0.64-0.52 °
Output voltage: 24V DC (direct current)
Possible outdoor installation, rain-proof, resistant to rain
Power supply voltage: 90-250 Volt AC 50-60 Hz
Output Voltage: 12V ± 0.5 Volt DC
Short circuit protection: automatic reset
Overload protection: + 20% (automatic reset)
Extra voltage protection: 255 Volt mains (automatic reset)
Over temperature protection: 80 ° C (automatic reset)
Length of connection wires: 20cm Inlet - 20cm Outlet
Structure: aluminum
Operating ambient temperature: -25. + 45 ° C
Storage temperature: -40. + 80 ° C
