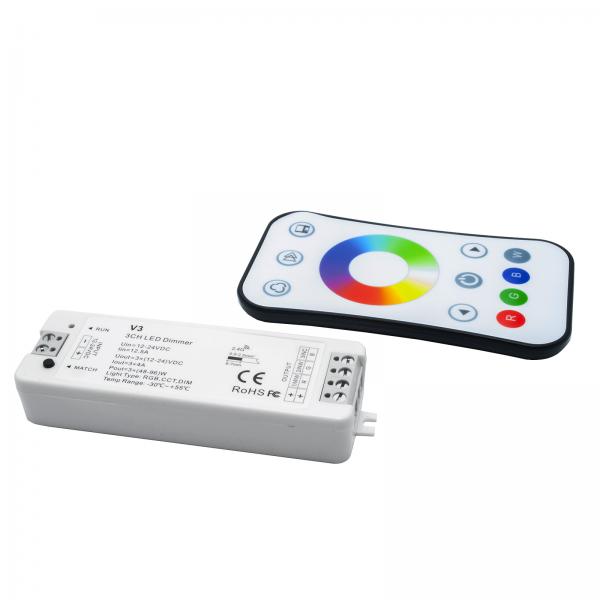

RF control unit suitable for managing strips, spotlights and multicolored RGB LED lamps that are powered at 12V / 24V equipped with 3 12.5A channels and supplied complete with 2.4Ghz RF remote control to manage all functions. Thanks to this control unit it is possible to change the color of light or to lower or increase the light intensity.
With a single remote control it is possible to synchronize several control units. Equipped with MATCH button to synchronize the remote control.
The color selection is done via the remote control using the color circle. Just touch the desired color to give the RGB device (led strip, spotlights, etc ...) the chosen color.
Furthermore, thanks to the dimmer function we can lower or increase the light intensity, and still set a scenario to be recalled thanks to the remote control, or manage the effects.
The controller works in RF 2.4Ghz radio frequency so therefore it is not necessary to point the remote control at the controller but it will work from any point nearby even if the controller is hidden or enclosed in junction boxes. The range is about 30 meters.
The remote control requires a CR2032 button battery (battery not included) and is equipped with a practical wall bracket.
The RF control unit has a maximum power of 12V of 144 W - Power of 24V 288 W. In addition to the on and off function from the remote control, the control unit is able to remember the last setting made even if its power supply is interrupted. This is useful if the device is inserted into a circuit controlled by a main switch or other type of command.
The connections are very simple as it will be enough to connect on one side of the terminal, the 12V or 24V power supply and on the remaining terminals your 12V or 24V RGB lamp.
Range approx: 30 meters
Battery: (CR2032) for remote control NOT INCLUDED
Compatible with LED strips: 12 V and 24 V
Power at 12V: max. 144 W - 24V power: max. 288 W
Input voltage: VDC 12-24V
Input Current: 0.28A Max
Output current: 3CH, 4A / CH
Output signal: 2.4GHz
Remote control size: 107mm x 59mm x 9mm
Controller size: 97mm x 33mm x 18mm
