SMART KIT chromotherapy shower box RGB spotlight RGBW built-in light IP65 24V LED lamp 12W WiFi control unit Alexa Google power supply

Product Model: PLIT-882860
Condition: New



      Scarica manuale tecnico:
      iva inclusa
        Disponibilità: 2695
        Costo spedizione da: €6.00
        Spedizione veloce: Corriere espresso
          Paga con: Contrassegno, Paypal, Bonifico bancario PAGAMENTI-SCHEDA-RPDOTTO

            RGBW chromotherapy KIT complete with waterproof IP65 recessed spotlight holder, an RGBW LED lamp available with RGB + 3000K warm light and RGB + 4000k natural light temperature, a WiFi control unit with voice control compatible with Amazon Alexa and Google Home and a power supply 24V dc IP65.

            [The spotlight holder] is made of die-cast aluminum painted with epoxy powders resistant to water suitable for humid environments, has a frosted glass diffuser and is supplied complete with aluminum outer casing has an IP65 degree of protection ideal for being built into a shower box , Turkish baths and all those places where there is humidity. Available in 3 colors white, chromed silver and brushed silver. Compatible with most GU10, GU5.3, MR16 lamps with 50mm diameter. The spotlight holder can be installed in the false ceiling by means of flaps or thanks to the removable aluminum outer casing it is possible to insert it in masonry ceilings.

            Dimensions of the hole for recessing 70 mm - Diameter of the spotlight 85 mm - Total height including lamp: 100mm

            [The spotlight] equipped with RGBW LEDs with a total power of 12W, it is powered by 24V and is available in 2 shades of RGB light + warm light 3000K and RGB + natural light 4000K. Perfect for creating chromotherapy effect solutions in the shower box. Thanks to the 5-wire power supply (r, g, b, w, common positive) the spotlight is easily connected to the control unit supplied in the KIT. The spotlight is equipped with the latest generation of low energy consumption LEDs and allows you to obtain both colored light and white light with a narrow light angle of 30 degrees. The metal structure allows for better heat dissipation for longer life.

            [The control unit] is powered at 12V / 24V and allows you to manage the spotlight via Wi-Fi using the Tuya APP or via the Amazon Alexa and Google Home voice assistants, or by associating it with a remote control or wall panel in RF 2.4G ( not included). Synchronization takes place via a button on the control unit. The controller is equipped with 5 channels supports a maximum load per channel of 3A (Total current: 15A). It has a power of 36W / 72W (180-360W total power). There is also an LED which, depending on the color, indicates the type of mode chosen.

            It is also possible to power it via a power supply with JACK. Thanks to this controller we can manage the spotlight both through the APP and using the Amazon Alexa and Google Home voice assistants, we can increase or decrease the light intensity, change color, set an effect with extreme simplicity. The control unit is equipped with screw terminals for connecting the wires.

            Dimensions of the control unit: 114mm x 20mm x 38mm

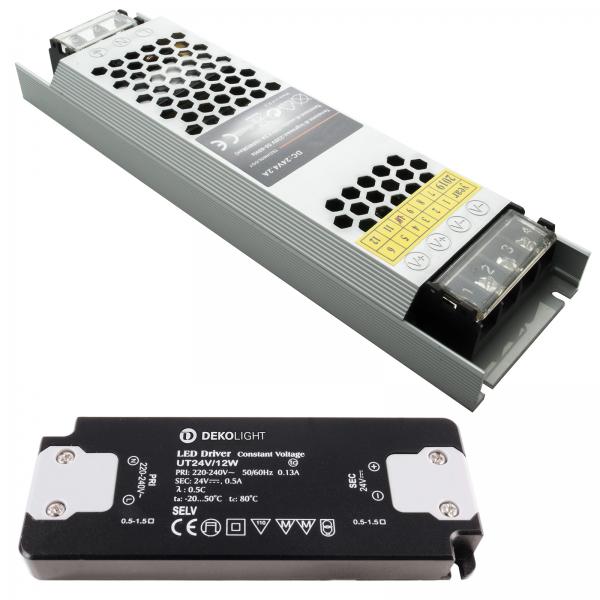

            [The power supply] included in the kit has a slim size, this allows for easy installation even in small spaces. It is powered at 230V and it is essential to power the KIT at 24V. It has an IP65 degree of protection suitable even in environments with the presence of humidity. It has a power of 12W with an output voltage of 12V max 500 mA. It is also equipped with protection against jolts and short circuits that extend the life of the LEDs so that they are not exposed to harmful voltage surges or fluctuations.

            Power supply dimensions: 128mm x 50mm x 13mm

            The KIT includes Nr. 1 spotlight holder - Nr. 1 RGBW lamp - Nr. 1 SMART WiFi control unit - Nr. 1 24V power supply

            Recessed hole: Ø 70mm
            Dimensions: Ø 84mm x 100mm
            Maximum depth: 100mm
            Light temperature: RGB+3000K, RGB+4000K
            Product material: Aluminium die-casting
            Energy label: A+
            Color: White, Brushed, Chrome,
            Type of LED: SMD
            Input voltage: 24V dc
            Degree of protection: IP65
            Power: 12W
            Light beam: 30°
